A flat roof terrace might seem simple, but the real test is whether it stays dry or starts leaking after a few years. Getting proper drainage on a flat roof terrace right means treating falls, outlets, overflow paths, and waterproofing junctions as one connected system – not just picking a gutter and hoping for the best.
We’ve seen plenty of terraces fail, not because the membrane was bad, but because the roof was built too flat, the outlets were too small, or water got trapped with nowhere to go. These are decisions made way before waterproofing goes down.
This guide jumps into the nuts and bolts of proper drainage on a flat roof terrace: how to get the falls right, size the outlets, and detail the tricky bits that keep water moving off your terrace. We’ll also talk about the extra headaches that come with occupied roof space – balustrades, maintenance, and all that.
Key Takeaways
- Falls, outlets, and overflow paths need to work together from the start.
- Outlet and gutter sizing should reflect UK rainfall and the real catchment area, not just a ballpark guess.
- Occupied terraces have extra risks – thresholds, paving, and access – compared to a plain flat roof.
Start With Falls and Surface Geometry
Every flat roof terrace needs a clear, steady slope to move water toward its outlets. Getting the geometry right early saves a ton of hassle later, and it starts with knowing the difference between a dead-level surface and one with a deliberate fall.
Why a Flat Roof Must Not Be Level
Despite the name, a flat roof shouldn’t be truly flat. If the surface is level, rain just sits wherever it lands.
This standing water – ponding – causes all sorts of trouble. It adds weight, wears out membranes faster, and encourages algae and silt to build up.
Every flat roof needs a built-in slope, even a small one, to guide water toward outlets or gutters.
Design Fall, Finished Fall and Structural Deflection
People often mix up design fall and finished fall. The design fall is what’s drawn up, usually 1:40 for new builds. The finished fall is what you actually get once the roof is built and settles.
Loads from people, furniture, snow, or planters can flatten the slope over time. Construction tolerances eat into the margin too. That’s why most go for a 1:40 design fall, even though the British Standard says 1:80 is the minimum finished fall.
Building in that extra margin helps cover the gap between the drawing and what’s actually built.
Creating Falls With Firrings
Firrings are tapered strips of timber fixed above horizontal joists to create a slope. They’re great for smaller extensions with a timber roof deck, where changing the structure itself would be a pain.
The firrings sit under the insulation and vapour control layer, so the fall is built into the frame before waterproofing goes on.
Sloping Decks or Tapered Insulation
Bigger roofs, or those built in reinforced concrete, usually get sloping decks or tapered beams during construction. This suits roofs with parapets or tricky shapes.
Tapered insulation boards – factory-cut and pre-formed – are now the go-to for most modern warm roofs. They give you accurate falls across the whole terrace, cut down site mistakes, and work around obstructions without messing with the structure.
Choose a Safe Route for Rainwater
Once you’ve sorted out the falls, water needs a clear way off the roof and away from the building. Whether you go for an edge gutter, a parapet outlet, or an internal drain, that choice shapes the rest of the detailing – upstands, copings, downpipe positions, all of it.
Edge Gutters and Welted Drips
If there’s no parapet, water can run straight over the edge into eaves gutters below. The roof membrane ends in a welted drip – a folded edge that channels water into the gutter and stops it sneaking back under the covering.
Gravel guards are handy if you’ve got a ballast or gravel finish, keeping loose material from clogging up the gutters.

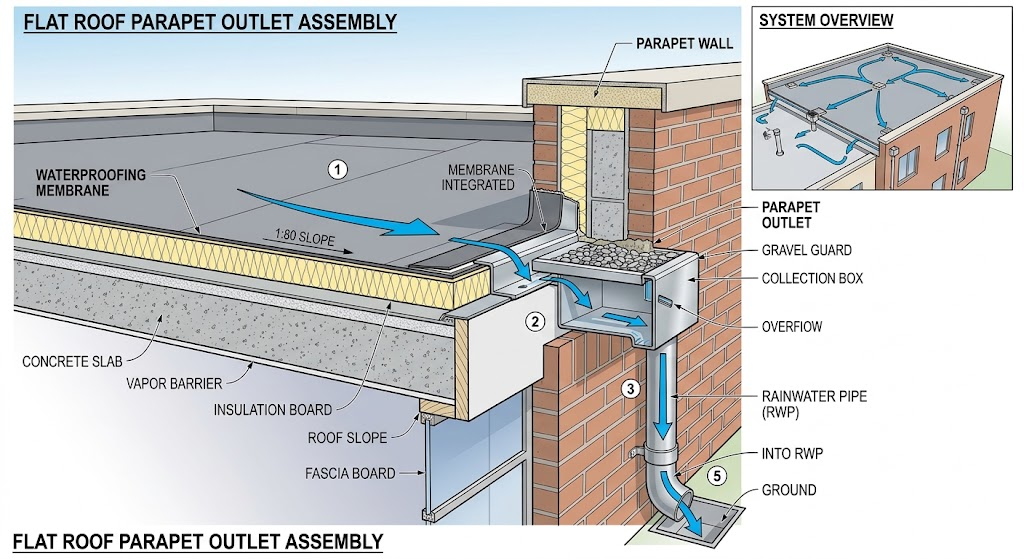

Parapet Outlets
Roofs boxed in by parapet walls can’t shed water over the edge, so you need outlets built into the roof. Roof outlets and rainwater outlets go vertically through the deck, connecting to downpipes inside or within the building.
Parapet construction needs a tilt fillet and enough upstand height to stop water spilling back over the wall in a downpour.
Scuppers and Internal Gutters
Scuppers are openings through a parapet wall that let water run out, often into a hopper and downpipe. They’re simple, reliable, and you can see if they’re blocked.
Internal gutters hide behind a parapet before connecting to downpipes. They look tidier but need careful falls and detailing, since mistakes are harder to spot and fix later.
Downpipes and Safe Discharge Locations
Downpipes should send water somewhere safe – not onto icy paths or into foundations. On terraces, try to keep discharge away from walkways and seating areas, so proper drainage on a flat roof terrace doesn’t mess with how people use the space.
Size Outlets and Overflows for UK Rainfall
Getting the fall right only helps if the outlets can handle the water. Sizing depends on the real catchment area, local rainfall, and what happens if a main outlet gets blocked.
Calculating the Effective Catchment Area
The total roof area isn’t always the only thing to count. Adjacent vertical surfaces – like tall parapets or next-door buildings – can dump extra rainwater onto your roof, boosting the effective catchment beyond the terrace itself.
This number feeds straight into outlet sizing, so check it early in the design, not just from the plan.
Rainfall Intensity, Return Period and Drainage Capacity
UK drainage capacity follows BS EN 12056-3 and the National Annex for the UK, which set rainfall and return period values for different areas.
A return period is about how rare a storm needs to be before the system is allowed to fail. High-risk terraces, especially those over living space, usually need a longer return period and more cautious drainage targets.
Honestly, with UK weather getting wilder, relying on old averages feels risky.
Secondary Drainage and Overflow Protection
Every main outlet needs a backup in case it blocks. Overflow protection could be a second outlet set a bit higher, an overflow scupper, or a warning weir you can spot from the ground.
Skip the overflow and a blocked outlet can trap a ton of water, loading up the structure and raising the risk of leaks inside. That’s not just a detail – it’s essential for proper drainage on a flat roof terrace.
Detail the Waterproofing at Vulnerable Junctions
Falls and outlets only work if the waterproofing holds up against water and movement. The junctions – where the roof membrane meets verticals, thresholds, or features – are where most problems start.
Upstands, Thresholds and Adjacent Walls
Every spot where the waterproofing membrane meets a vertical surface needs an upstand, usually at least 150mm above the finished roof. This goes for parapets, door thresholds, and adjacent walls.
A cavity tray and weep holes handle any moisture that sneaks behind the outer wall, while an angle fillet softens the corner so the membrane doesn’t crack.
Membrane Compatibility
Not every roof membrane plays nice with every outlet or flashing. Bitumen sheet, mastic asphalt, single ply membranes, and liquid systems all have their own quirks.
Look for products with British Board of Agrément certification – it’s a solid check that the membrane, outlet, and flashing will actually work together.
Preventing Trapped Water Around Roof Features
Rooflights, upstands, and parapet returns can all create spots where water collects. Triangular raised falls – sometimes called crickets – redirect water around these obstacles.
Skip this, and those areas collect silt and stay wet long after the rest of the roof dries, wearing the membrane out faster.
Adapt the Design for Usable Terraces and Complex Roofs
Occupied roof space brings extra challenges that a simple flat roof doesn’t – foot traffic, paving build-ups, accessibility, and fire separation between homes.
Balcony Drainage, Channels and Edge-Drained Layouts
Balcony drainage usually needs steeper falls, maybe 1:60, and drainage channels set into the paving or decking. Free-draining balconies let water pass between paving or decking down to a waterproofed layer, so the walking surface stays dry.
Brands like ACO make stainless steel and galvanised steel channel systems just for this kind of edge-drained terrace.
Green Roof Build-Ups and Controlled Water Retention
Green roofs mix planting with warm roof construction, using special drainage layers that hold some water for the plants but still drain away the excess. These need their own hydraulic checks, since retention changes how fast water hits the outlets.
Maintenance Access
Outlets, gullies, and overflow paths must stay accessible for cleaning. Plan for maintenance from the start, not after paving or planters go in and block everything.
Fire Safety and Approval
Terraces over living space fall under fire safety rules in the Building Regulations. Building control and NHBC standards have requirements for joist hangers, structural fixings, and compartmentation that tie in with the drainage build-up.
Looking for a fix for your flat roof?
Speak to our team at SPS Roofing Ltd and we will get in touch with you for a custom quote.
Frequently Asked Questions
What is the best drainage system for a flat roof terrace?
There’s no universal answer. The best setup depends on parapets, access, and what kind of paving you use. Usually, a mix of tapered insulation falls, properly sized outlets, and edge-drained channels gives the best long-term results for proper drainage on a flat roof terrace.
How should a flat roof terrace be sloped to ensure effective water runoff?
A finished fall of at least 1:80 is the bare minimum, but most terraces go for 1:40 to 1:60 to allow for sag and construction quirks. The fall needs to guide water straight to the outlets, without flat spots or reverse slopes around obstacles.
What are the main methods of draining a flat roof terrace?
You’ve got a few main options for proper drainage on a flat roof terrace: edge gutters, parapet scuppers, internal gutters, and vertical roof outlets hooked up to downpipes. Most folks end up mixing and matching – usually there’s a main route, then a backup overflow just in case things get wild.
How many drainage outlets does a flat roof terrace need?
The number of outlets really depends on the roof’s area, its shape, and how hard the rain tends to fall. People use BS EN 12056-3 and the National Annex for the UK to crunch the numbers. If you’ve got a bigger or oddly shaped terrace, you’ll probably need more than one outlet, and each should have its own overflow – no shortcuts here if you want proper drainage on a flat roof terrace.
When should scuppers be used instead of roof drains?
Scuppers make sense if there’s already a parapet wall and you want a straightforward, visible spot for water to leave, instead of hiding pipes inside the structure. They’re popular for their no-fuss setup and the fact that you can inspect them easily, which is honestly a relief compared to poking around inside gutters or vertical outlets.
How can standing water on a flat roof terrace be prevented or fixed?
Standing water usually shows up because there aren’t enough falls, outlets get blocked, or water gets trapped behind features on the roof. If you’re after proper drainage on a flat roof terrace, you’ll need to take a closer look at these trouble spots.
To fix it, try re-profiling the falls with tapered insulation. You can also clear or move the outlets, and add crickets around any obstructions to get rid of those stubborn flat spots.
